Raster

Image-processing ops over Raster (and, where noted, Sprite): generators, composition, colour, warp, morphology, dither, terrain.

40 ops: blend, blur, brightness-contrast, channel-shuffle, circle, color-ramp, color-to-alpha, density, dilate, displace, dither, edge-detect, erode, field-math, flow-field, flow-smear, gradient-conic, gradient-diamond, gradient-linear, gradient-radial, hillshade, hsl, invert, levels, map-range, mix, mosaic, noise, place, posterize, quantize, saturate, sharpen, slope, solid, stack, threshold, tiling, vibrance, warp.

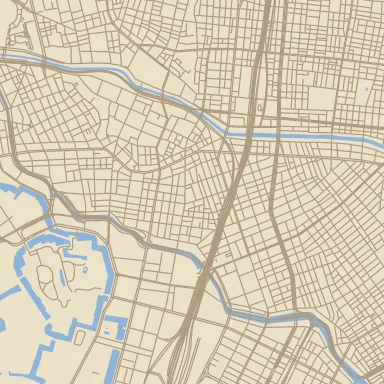

blend

Composite over onto base with a W3C blend mode. clip: true clips result to base alpha (Photoshop-style clipping mask, i.e. source-atop): the result takes the base’s alpha, so clipping onto a 0.12-alpha wash caps the whole overlay at 0.12 — when you mean “restrict this to an area”, give an opaque shape as mask instead. composite: "destination-out" makes over erase base (brush-eraser effect when over is a brush-shaped raster). Optional mask raster’s alpha modulates source coverage.

A colour multiplied over the base — one of sixteen W3C blend modes. style

Field	Type	Required	Description
base	@node	yes	Reference to another node (@name).
clip	boolean | $param | @node	no	—
composite	over | source-over | destination-out | dest-out | erase	no	—
mask	@node	no	Reference to another node (@name).
mode	normal | multiply | screen | overlay | darken | lighten | color-dodge | color-burn | hard-light | soft-light | difference | exclusion | hue | saturation | color | luminosity	no	—
opacity	number (0…1) | $param | @node	no	—
over	@node	yes	Reference to another node (@name).

blur

Gaussian blur on a raster, sprite or scalar field; the output is the same kind as the input. Rasters are blurred in fixed point and fields in a fixed order of float operations, so both render the same bytes on every host. Blurring an elevation field (dem) before hillshade, slope or flow-field generalises the terrain: small gullies drop out and the major ridges stay, so the shading follows the ridge crests. A field keeps its nodata value and geographic scale; nodata samples are left out of the average, and a pixel with nothing but nodata in reach stays nodata. Grows upstream pad by 3σ, so sigma needs an upper bound the build can see: a literal, a $param with max, or sigma-max alongside an @node port (the port’s value is then clamped to it).

Gaussian blur, σ = 6 px. style

Field	Type	Required	Description
input	@node	yes	Reference to another node (@name).
sigma	number (0…∞) | $param | @node	yes	—
sigma-max	number (0…∞)	no	Upper bound on sigma for padding, required when sigma is an @node port. Values above it are clamped.

brightness-contrast

Linear brightness shift and contrast slope around mid-gray. Both in [-1, 1], 0 = no change.

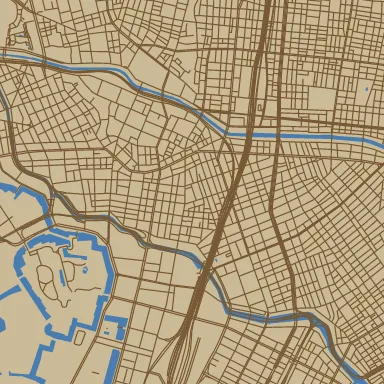

Darkened, with contrast raised around mid-grey. style

Field	Type	Required	Description
brightness	number (-1…1) | $param | @node	no	—
contrast	number (-1…1) | $param | @node	no	—
input	@node	yes	Reference to another node (@name).

channel-shuffle

Rearrange RGBA channels. Each output (r/g/b/a) names which input channel feeds it, or a constant (0/1). Identity by default. Operates in non-premultiplied sRGB.

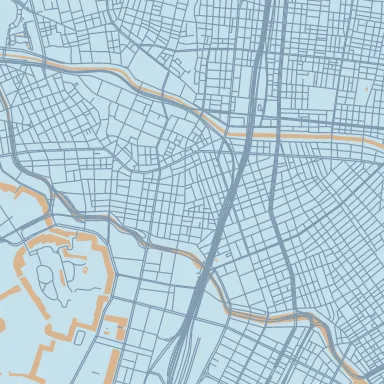

Channels permuted — red and blue swapped. style

Field	Type	Required	Description
a	r | g | b | a | 0 | 1	no	—
b	r | g | b | a | 0 | 1	no	—
g	r | g | b | a | 0 | 1	no	—
input	@node	yes	Reference to another node (@name).
r	r | g | b | a | 0 | 1	no	—

circle

Centred disk source. kind: raster (default) renders at canvas size with radius = radius-frac × tile-size. kind: sprite renders at width-px × height-px with radius = radius-frac × min(width, height).

A canvas-sized circle — the sprite behind MapLibre’s circle layers. style

Field	Type	Required	Description
color	color | $param | @node	yes	sRGB hex color, $param reference, or @node scalar port.
hardness	number (0…1) | $param | @node	no	—
height-px	integer (1…∞)	no	—
kind	raster | sprite	no	—
radius-frac	number (0…1) | $param | @node	yes	—
width-px	integer (1…∞)	no	—

color-ramp

Map a ScalarField (or a Raster, by its luminance — a gradient map) to colour through a stop table, interpolating between stops in space. Samples outside [stops[0].value, stops[-1].value] clamp to the end colours. A field’s missing samples (NaN or its nodata value) are fully transparent. Canonical use case is hypsometric tinting over a DEM (stops[i].value = elevation in metres). Give ramp-expr instead of stops to drive the ramp from a MapLibre color expression over heatmap-density.

Field	Type	Required	Description
field	@node	yes	Reference to another node (@name).
opacity	number (0…1) | $param | @node	no	Uniform output-alpha multiplier (layer opacity). Default 1.0. Feed an expr node via @node for a zoom curve.
ramp-expr	—	no	A MapLibre color expression over heatmap-density (e.g. a heatmap-color value). When present it overrides stops: the expression is baked into a 256-entry LUT per eval (zoom in context), inputs clamp to [0, 1], and lookups interpolate linearly between entries — mirroring MapLibre’s 256-px ramp texture. stops is only required when this is absent.
space	rgb | hsl | hsv | hcl | lab	no	Colour space the stops interpolate in. rgb (default) is a straight sRGB lerp; hsl/hsv/hcl interpolate hue on the shortest path; hcl/lab are perceptual (ported from the MapLibre style spec).
stops	array of object	no	Either half of a stop may be a $param, so a ramp can be recoloured or rescaled at render time. The table is sorted by value on every eval, so a param may reorder it.

color-to-alpha

Make pixels close to color transparent. Distance ≤ threshold → alpha 0, distance ≥ threshold + softness → alpha unchanged, linear in between. Distance is Chebyshev (max per-channel) in non-premultiplied sRGB.

The paper colour knocked out to transparency. style

Field	Type	Required	Description
color	color | $param | @node	yes	sRGB hex color, $param reference, or @node scalar port.
input	@node	yes	Reference to another node (@name).
softness	number (0…1) | $param | @node	no	—
threshold	number (0…1) | $param | @node	no	—

density

Kernel-density estimate of the input’s point features as a ScalarField (the MapLibre heatmap kernel: support = radius px, falloff exp(-0.5·3²·(d/radius)²)/√(2π)). Points only — lines and polygons contribute nothing, so a line or polygon layer comes out an all-zero field with no error; put centroid in front of it. Buffer points outside the tile still contribute, so tile borders match. Output is raw accumulated density, unclamped and scaling with intensity, so probe its range before placing ramp stops. Map it with color-ramp or extract isolines with contour. Grows upstream pad by radius.

Field	Type	Required	Description
features	@node	yes	Reference to another node (@name).
intensity	number (0…∞) | $param | @node	no	Global multiplier on every point’s contribution.
intensity-expr	—	no	A MapLibre number expression giving the intensity multiplier, evaluated per feature group; overrides the constant intensity.
radius	number (0…∞) | $param | @node	no	Kernel radius in px. Pad is computed at build time, so this needs a static bound: a literal, or a $param with max.
radius-expr	—	no	A MapLibre number expression (px), evaluated per feature group; overrides the constant radius. Evaluated values are clamped to radius’s static bound so the pad stays sound.
weight-expr	—	no	A MapLibre number expression giving a point’s weight, evaluated per feature group. A group without it (or whose expression doesn’t resolve to a number) weighs 1.

dilate

Per-channel morphological max over a square kernel, on a raster, sprite or scalar field; the output is the same kind as the input. Grows bright / opaque regions; pair with erode to clean up speckle noise (open / close). Being a max, it also flattens detail finer than the kernel — a few px of radius-px is enough to erase grain, so add grain after morphology, never before. On an elevation field (dem) it raises each sample to the highest in reach, widening peaks and ridges and narrowing valleys; dilate then erode (a closing) fills pits and gullies narrower than the kernel while leaving broad slopes alone. A field keeps its nodata value and geographic scale; nodata samples are left out, and a pixel with nothing but nodata in reach stays nodata. Separable box implementation; grows upstream pad by radius-px.

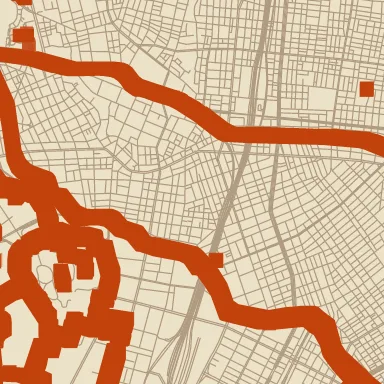

Dilation of a water mask — coverage grows by the kernel radius. style

Field	Type	Required	Description
input	@node	yes	Reference to another node (@name).
radius-px	integer (0…256) | $param | @node	yes	—
radius-px-max	number (0…∞)	no	Upper bound on radius-px for padding, required when radius-px is an @node port. Values above it are clamped.

displace

Photoshop-style displacement map. Output pixel reads input at a position offset by the displacement raster’s R/G channels (0.5 means no offset). input may be a raster, sprite or scalar field, and the output is the same kind. Displacing an elevation field (dem) bends it before contour or hillshade, the same way the map bends the imagery drawn over it, and the contour lines stay level lines of one surface, so they never cross. A field keeps its nodata value and geographic scale; nodata samples are left out of the interpolation, a read with only nodata around it stays nodata, and the field always clamps at its edge. Grows upstream pad by amp-px so warped samples stay seamless across tile borders, provided the displacement source is itself seamless (e.g. noise with anchor: world).

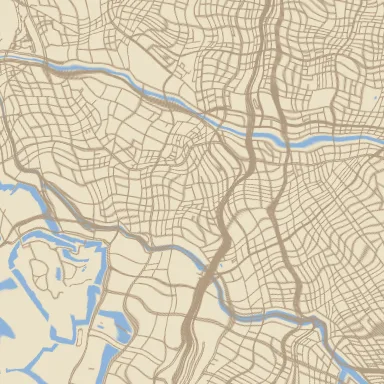

Displaced by a separate low-frequency noise raster. style

Field	Type	Required	Description
amp-px	number (0…∞) | $param | @node	yes	—
amp-x-px	number (0…∞) | $param | @node	no	—
amp-x-px-max	number (0…∞)	no	Upper bound on amp-x-px for padding, required when amp-x-px is an @node port. Values above it are clamped.
amp-y-px	number (0…∞) | $param | @node	no	—
amp-y-px-max	number (0…∞)	no	Upper bound on amp-y-px for padding, required when amp-y-px is an @node port. Values above it are clamped.
boundary	clamp | transparent | mirror	no	—
displacement	@node	yes	Reference to another node (@name).
input	@node	yes	Reference to another node (@name).

dither

Reduce to a fixed palette with dithering so gradients survive a small palette. method: "floyd-steinberg" (default) diffuses error to neighbours; method: "ordered" uses a 4×4 Bayer matrix with strength amount (0..1). Nearest-colour distance uses space (lab default / rgb). Alpha preserved.

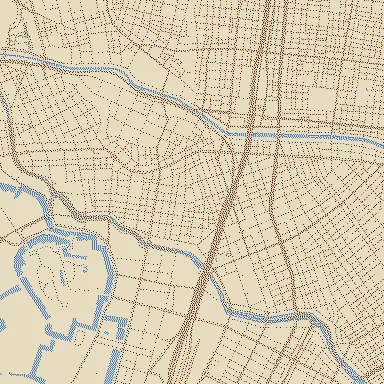

The same four inks, error-diffused — gradients survive the reduction. style

Field	Type	Required	Description
amount	number (0…1)	no	Ordered-dither strength (ignored for floyd-steinberg).
input	@node	yes	Reference to another node (@name).
method	floyd-steinberg | ordered	no	—
palette	array of string	yes	Each entry is #rrggbb / #rrggbbaa (alpha ignored for matching) or a $param, so a palette can be recoloured at render time.
space	lab | rgb	no	—

edge-detect

Sobel gradient magnitude per channel, scaled by strength and clamped to [0, 255]. Pass-through over Raster / Sprite. Use after a hillshade for stylised outlines, or on a flat fill to derive an outline mask.

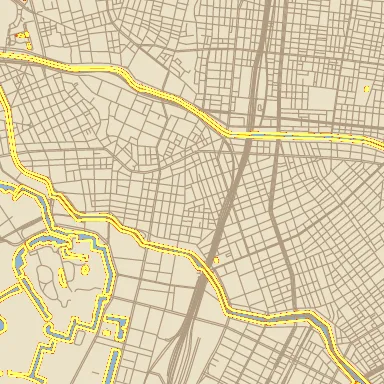

Sobel over a flat water fill — the outline mask the op is usually used for. style

Field	Type	Required	Description
input	@node	yes	Reference to another node (@name).
strength	number (0…∞) | $param | @node	no	Scale factor applied to the gradient magnitude before clamping.

erode

Per-channel morphological min over a square kernel, on a raster, sprite or scalar field; the output is the same kind as the input. Shrinks bright / opaque regions; classic mask cleanup after color-to-alpha. Removes anything thinner than the kernel outright, so erode then dilate (an opening) keeps only features wider than radius-px — a way to select by size when the source carries no size attribute. Detail finer than the radius does not survive either op: add grain after morphology, never before. On an elevation field (dem) it lowers each sample to the lowest in reach, narrowing peaks and ridges and widening valleys; an opening shaves off spikes and ridges narrower than the kernel. A field keeps its nodata value and geographic scale; nodata samples are left out, and a pixel with nothing but nodata in reach stays nodata. Separable box implementation; grows upstream pad by radius-px.

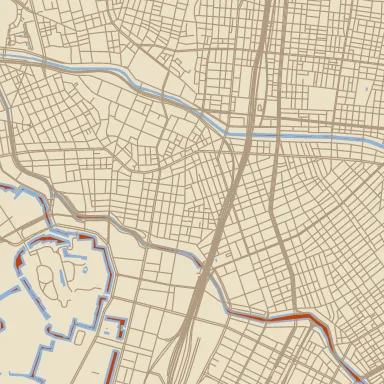

Erosion of the same mask — coverage shrinks, and the narrow channels vanish. style

Field	Type	Required	Description
input	@node	yes	Reference to another node (@name).
radius-px	integer (0…256) | $param | @node	yes	—
radius-px-max	number (0…∞)	no	Upper bound on radius-px for padding, required when radius-px is an @node port. Values above it are clamped.

field-math

Per-pixel arithmetic over scalar fields, with the same functions as math: unary fns use a; binary a b; clamp(a, b=lo, c=hi), lerp(a, b, c=t). Each operand is a field (@node outputting a ScalarField) or a number (literal, $param, or @node scalar port) applied to every pixel; at least one must be a field, and all fields must be the same size. Add a little noise to a DEM to roughen it, mix two fields by a third with lerp, or scale a field by a $param. A pixel is missing in the output where any field operand is missing (NaN or its nodata value), or where the result is not a finite number (sqrt of a negative, div by zero). The output keeps the nodata value and geographic scale of the first field operand, and writes missing pixels as that nodata, or NaN.

Field	Type	Required	Description
a	number | $param | @node	yes	$param reference, or @node that outputs a ScalarField or a Scalar.
b	number | $param | @node	no	$param reference, or @node that outputs a ScalarField or a Scalar.
c	number | $param | @node	no	$param reference, or @node that outputs a ScalarField or a Scalar.
fn	abs | neg | floor | ceil | round | sqrt | add | sub | mul | div | mod | min | max | pow | clamp | lerp	yes	—

flow-field

Direction raster from an elevation field: which way the ground falls, rises, or runs level at each pixel. R = 0.5 + 0.5·vx and G = 0.5 + 0.5·vy in pixel axes (+x east, +y south), B = 0, opaque; flat 50% grey means no direction. This is displace’s encoding, so the output feeds displace directly, and it is what flow-smear reads to streak a texture along the terrain. The vector’s length is the slope angle over max-deg (capped at 1), or 1 everywhere the ground slopes with normalize. Missing samples (NaN or the field’s nodata value) get the opaque no-flow grey, so displace and flow-smear leave them in place; a missing neighbour counts as the centre value, so the ground around a hole does not flow into or out of it.

Field	Type	Required	Description
direction	downhill | uphill | along	no	downhill follows the fall line, uphill points the other way, and along follows the contour lines with downhill on its right-hand side (counter-clockwise around a summit on a north-up map).
exaggeration	number | $param | @node	no	Multiplier on the gradient before the slope angle is taken, as in hillshade.
field	@node	yes	Reference to another node (@name).
max-deg	number | $param | @node	no	Slope angle (degrees) at which the vector reaches full length. Ignored with normalize.
normalize	boolean | $param | @node	no	If true, every sloping pixel gets a vector of length 1; only perfectly flat ground stays at zero.

flow-smear

Smears input along the streamlines of a direction field (line integral convolution): each pixel becomes the average of input sampled along the curve through it, re-reading the field at every step so strokes bend with it. The field is flow-field’s encoding — R/G = 0.5 + 0.5·v in pixel axes, flat grey meaning no direction — and a pixel’s walk is length-px times the field’s length there, so flat ground stays sharp. For hachures or contour strokes, smear a world-anchored noise along dem → flow-field, then threshold or color-ramp the result. Seamless across tile borders when input is world-anchored; grows the upstream pad by length-px + 1.

Field	Type	Required	Description
field	@node	yes	Reference to another node (@name).
input	@node	yes	Reference to another node (@name).
length-px	number (0…∞) | $param | @node	no	Walk length in px each way, at full field length.
length-px-max	number (0…∞)	no	Upper bound on length-px for padding, required when length-px is an @node port. Values above it are clamped.
sides	both | forward	no	both smears each way along the field, so a speck becomes a stroke centred on it; forward smears only the way the field points, so a speck trails a comet tail downstream.
taper	flat | smooth	no	flat weights every sample alike; smooth fades them towards the ends of the walk (a Hann window), softening the stroke ends.

gradient-conic

Conic (sweep) gradient around center. Gradient parameter is the clockwise angle from start-angle (degrees) normalized to [0, 1). 0° points along +x. kind: sprite switches to sprite-local [0, 1] coords.

A conic gradient sweeping around the centre. style

Field	Type	Required	Description
anchor	tile | world	no	—
center	array of number	no	—
height-px	integer (1…∞)	no	—
kind	raster | sprite	no	—
space	rgb | hsl | hsv | hcl | lab	no	Colour space the stops interpolate in; hue-based spaces take the shortest path.
start-angle	number | $param | @node	no	—
stops	array of array of —	yes	[[t, color], ...]. Either half of a pair may be a $param; the table is sorted by t on every eval, so stops need not be declared in order.
width-px	integer (1…∞)	no	—

gradient-diamond

Diamond gradient from center. Gradient parameter is Manhattan (|dx| + |dy|) distance / radius. kind: sprite switches to sprite-local [0, 1] coords.

A diamond gradient — square distance rather than radial. style

Field	Type	Required	Description
anchor	tile | world	no	—
center	array of number	no	—
height-px	integer (1…∞)	no	—
kind	raster | sprite	no	—
radius	number (0…∞) | $param | @node	no	—
space	rgb | hsl | hsv | hcl | lab	no	Colour space the stops interpolate in; hue-based spaces take the shortest path.
stops	array of array of —	yes	[[t, color], ...]. Either half of a pair may be a $param; the table is sorted by t on every eval, so stops need not be declared in order.
width-px	integer (1…∞)	no	—

gradient-linear

Linear gradient from start to end (fractional coords). kind: raster (default) samples in tile/world coords; kind: sprite samples in [0, 1] sprite coords at width-px × height-px.

A linear gradient across the canvas. style

Field	Type	Required	Description
anchor	tile | world	no	—
end	array of number	no	—
height-px	integer (1…∞)	no	—
kind	raster | sprite	no	—
space	rgb | hsl | hsv | hcl | lab	no	Colour space the stops interpolate in; hue-based spaces take the shortest path.
start	array of number	no	—
stops	array of array of —	yes	[[t, color], ...]. Either half of a pair may be a $param; the table is sorted by t on every eval, so stops need not be declared in order.
width-px	integer (1…∞)	no	—

gradient-radial

Radial gradient from center outward. Gradient parameter is Euclidean distance / radius. aspect > 1 stretches the ellipse along X, < 1 along Y. kind: sprite switches to sprite-local [0, 1] coords.

A radial gradient from the canvas centre. style

Field	Type	Required	Description
anchor	tile | world	no	—
aspect	number (0…∞) | $param | @node	no	—
center	array of number	no	—
height-px	integer (1…∞)	no	—
kind	raster | sprite	no	—
radius	number (0…∞) | $param | @node	no	—
space	rgb | hsl | hsv | hcl | lab	no	Colour space the stops interpolate in; hue-based spaces take the shortest path.
stops	array of array of —	yes	[[t, color], ...]. Either half of a pair may be a $param; the table is sorted by t on every eval, so stops need not be declared in order.
width-px	integer (1…∞)	no	—

hillshade

Analytical hillshade (Horn 1981) from a ScalarField. mode: shade outputs grayscale; mode: relief outputs transparent black scaled by 1-shade for multiply-blend over a base map. Missing samples (NaN or the field’s nodata value) are fully transparent in both modes; a missing neighbour counts as the centre value, so the edge of a hole shades as level ground instead of a cliff.

Field	Type	Required	Description
altitude-deg	number | $param | @node	no	Light elevation above the horizon (degrees).
azimuth-deg	number | $param | @node	no	Light direction (0 = north, clockwise).
exaggeration	number | $param | @node	no	Extra vertical exaggeration on top of z-factor.
field	@node	yes	Reference to another node (@name).
highlight-color	color | $param | @node	no	sRGB hex color, $param reference, or @node scalar port.
mode	shade | relief	no	—
multidirectional	boolean | $param | @node	no	ESRI-style 4-direction weighted hillshade — softer, more legible at small zooms.
shadow-color	color | $param | @node	no	sRGB hex color, $param reference, or @node scalar port.
z-factor	number | $param | @node	no	Multiplier on elevation before gradient — use ~1/cos(lat) for high latitudes.

hsl

HSL adjustment: rotate hue by hue-shift degrees, shift saturation/lightness in [-1, 1] (0 = no change, +1 = toward max, -1 = toward 0).

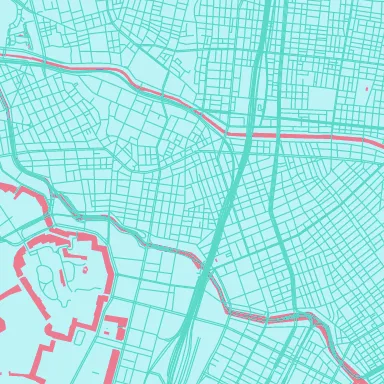

Hue rotated and saturation raised. style

Field	Type	Required	Description
hue-shift	number | $param | @node	no	—
input	@node	yes	Reference to another node (@name).
lightness	number (-1…1) | $param | @node	no	—
saturation	number (-1…1) | $param | @node	no	—

invert

Negate RGB channels (1 - c). Alpha is preserved.

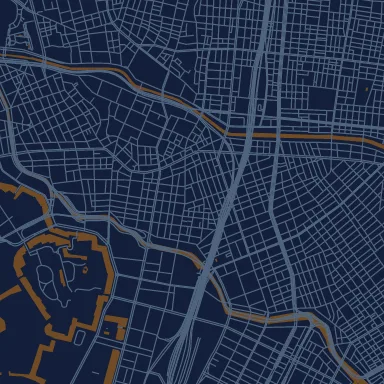

Every channel inverted. style

Field	Type	Required	Description
input	@node	yes	Reference to another node (@name).

levels

Photoshop-style levels: remap input range [in-black, in-white] through gamma onto output range [out-black, out-white]. All values in [0, 1] (non-premultiplied sRGB). gamma > 1 lightens midtones; gamma < 1 darkens them.

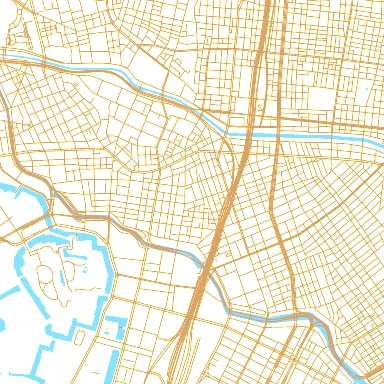

Input range remapped — the tonal-range expansion before a screen. style

Field	Type	Required	Description
gamma	number (0.01…∞) | $param | @node	no	—
in-black	number (0…1) | $param | @node	no	—
in-white	number (0…1) | $param | @node	no	—
input	@node	yes	Reference to another node (@name).
out-black	number (0…1) | $param | @node	no	—
out-white	number (0…1) | $param | @node	no	—

map-range

Linearly remap scalar field values from [in-min, in-max] to [out-min, out-max]. With clamp: true, results outside the output range are pinned to the range bounds. Missing samples (NaN or the field’s nodata value) stay missing: the output keeps the field’s nodata value and geographic scale, and writes missing pixels as that nodata, or NaN. Useful for normalising elevation or distance fields before a color-ramp.

Field	Type	Required	Description
clamp	boolean | $param | @node	no	—
field	@node	yes	Reference to another node (@name).
in-max	number | $param | @node	no	—
in-min	number | $param | @node	no	—
out-max	number | $param | @node	no	—
out-min	number | $param | @node	no	—

mix

Interpolate two rasters per-pixel by scalar t (0..1) in colour space. A straight colour tween (contrast with blend, which composites with alpha). t accepts a literal, $param, or @node scalar for param-driven theming.

A straight crossfade between two rasters. style

Field	Type	Required	Description
a	@node	yes	Reference to another node (@name).
b	@node	yes	Reference to another node (@name).
space	rgb | hsl | hsv | hcl | lab	no	Colour space the interpolation runs in; hue-based spaces take the shortest path.
t	number (0…1) | $param | @node	no	—

mosaic

Quantize a raster into uniform square blocks. mode selects how each block is summarized: average (default) takes the mean of covered pixels (smooth, classic mosaic); nearest takes the block’s centre pixel (crisp, no inter-colour blending). World-anchored by default so adjacent map tiles share the same block grid.

Averaged into 8 px blocks, on a world-anchored grid. style

Field	Type	Required	Description
anchor	world | tile	no	world (default) makes the block grid seamless across map tiles by growing the upstream pad. tile restarts the grid at every map tile’s top-left and requires no extra padding.
block	integer (1…∞) | $param | @node	yes	Block edge length in canvas pixels. With anchor: world the block size sets the canvas padding, which is fixed before anything renders — so this needs an upper bound the build can see: a literal, a $param with max, or block-max beside an @node port.
block-max	number (0…∞)	no	Upper bound on block for padding, required when block is an @node port. Values above it are clamped.
input	@node	yes	Reference to another node (@name).
mode	average | nearest	no	average (default) blends covered pixels into a mean colour. nearest samples the block’s centre pixel verbatim — produces hard block edges without inter-colour averaging.

noise

Procedural noise source. With kind: raster (default) the noise is mapped to RGBA via low-color/high-color/opacity. With kind: scalar it emits a ScalarField of raw fBm values — compose with map-range before feeding hillshade/color-ramp. Every type lands in [-1, 1]. white/value/perlin/simplex sit around 0. worley and cell both divide the plane into cells around scattered sites: worley is 1 − 2·distance to the nearest site, +1 on the site and falling towards the cell’s edge, and cell is the nearest site’s own random value, flat across its cell and spread evenly over [-1, 1] — one tone per cell, for stones, panes or patches. anchor=world (default) keeps the field seamless across tile borders.

Fractal noise, world-anchored so it is continuous across tiles. style

Field	Type	Required	Description
anchor	tile | world	no	—
gain	number | $param | @node	no	—
high-color	color | $param | @node	no	sRGB hex color, $param reference, or @node scalar port.
kind	raster | scalar	no	—
lacunarity	number | $param | @node	no	—
low-color	color | $param | @node	no	sRGB hex color, $param reference, or @node scalar port.
octaves	integer (1…12)	no	—
opacity	number (0…1) | $param | @node	no	—
scale-px	number | array of number	yes	Noise wavelength in pixels. A single number for isotropic noise; an [x, y] array for anisotropic noise (larger value = longer wavelength along that axis, i.e. stretched pattern).
seed	integer (0…∞)	no	Field seed. Omitted, anchor: world uses a fixed seed so every tile samples the same field, and anchor: tile uses the host’s per-tile seed so each tile gets its own. Set it to pin either.
type	white | value | perlin | simplex | worley | cell	no	—
warp-amp	number | $param | @node	no	—
warp-freq	number | $param | @node	no	—

place

Draw the source raster onto the canvas exactly once. fit:none (default) uses position/anchor/scale; cover/contain/stretch derive the destination rect from the canvas (and treat position-px as an offset from canvas center). Companion to tiling (repeats) and stamp (per-point).

Field	Type	Required	Description
anchor	top-left | top-center | top-right | center-left | center | center-right | bottom-left | bottom-center | bottom-right	no	Only used when fit=none.
fit	none | cover | contain | stretch	no	—
input	@node	yes	Reference to another node (@name).
opacity	number (0…1) | $param | @node	no	—
position-px	array of number	no	fit=none: canvas pixel where the image’s anchor point lands. Other fits: offset from canvas center.
rotation-deg	number | $param | @node	no	Rotation (degrees clockwise) around the placement anchor / canvas center.
scale	number (0…∞) | $param | @node	no	Uniform scale for fit=none. Ignored for other fits.

posterize

Quantise each RGB channel into steps evenly-spaced levels (in non-premultiplied sRGB). Alpha preserved. Pair with levels to control which tonal band gets the strongest banding.

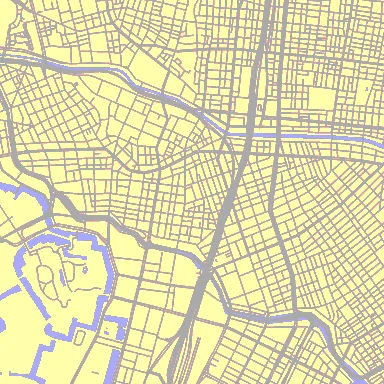

Each channel snapped to four levels. style

Field	Type	Required	Description
input	@node	yes	Reference to another node (@name).
steps	integer (2…256)	no	—

quantize

Snap each pixel to the nearest colour in palette, measuring distance in space (lab = perceptual ΔE, default; or rgb). Alpha is preserved. Use for limited-palette / poster / pixel-art looks; see dither for the error-diffused variant.

Mapped to a four-ink palette, no dithering. style

Field	Type	Required	Description
input	@node	yes	Reference to another node (@name).
palette	array of string	yes	Each entry is #rrggbb / #rrggbbaa (alpha ignored for matching) or a $param, so a palette can be recoloured at render time.
space	lab | rgb	no	Colour space the nearest-colour distance is measured in.

saturate

Scale CIELAB chroma uniformly by amount (1 = identity, 0 = greyscale, >1 = more saturated). Hue and lightness are preserved.

Saturation pushed up. style

Field	Type	Required	Description
amount	number (0…∞) | $param | @node	no	—
input	@node	yes	Reference to another node (@name).

sharpen

4-neighbour Laplacian sharpen on a raster, sprite or scalar field; the output is the same kind as the input. Amplifies each pixel relative to its orthogonal neighbours by amount. Around 0.5–1.0 is a typical unsharp-mask look; negative values give a soft halo. Sharpening an elevation field (dem) before hillshade or slope steepens the flanks of ridges and valleys, so the shading draws crisper crests; a field is not clamped, so values can overshoot past the field’s range next to a sharp step. A field keeps its nodata value and geographic scale; a nodata neighbour counts as the centre value, so a hole does not distort its rim, and a nodata sample stays nodata. Grows upstream pad by 1.

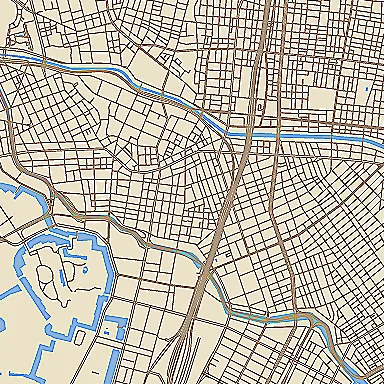

Unsharp-mask style sharpening. style

Field	Type	Required	Description
amount	number | $param | @node	no	Sharpening strength. 0 = pass-through, ~1 = strong.
input	@node	yes	Reference to another node (@name).

slope

Slope angle as grayscale, normalised to 0..1 against max-deg. Missing samples (NaN or the field’s nodata value) are fully transparent; a missing neighbour counts as the centre value, so the edge of a hole reads as level ground instead of a sheer drop.

Field	Type	Required	Description
field	@node	yes	Reference to another node (@name).
invert	boolean | $param | @node	no	If true, flat = white and steep = black.
max-deg	number | $param | @node	no	Slope angle (degrees) that maps to white.

solid

Solid-colour source. kind: raster (default) fills the full canvas; kind: sprite emits a Sprite at width-px × height-px for use as a synthetic placement/tiling source.

A single flat colour over the whole canvas. style

Field	Type	Required	Description
color	color | $param | @node	yes	sRGB hex color, $param reference, or @node scalar port.
height-px	integer (1…∞)	no	—
kind	raster | sprite	no	—
width-px	integer (1…∞)	no	—

stack

Composite an ordered list of raster layers bottom-to-top with plain source-over (equivalent to a chain of blend nodes with mode: normal, composite: over, opacity: 1), folded into one pass over a single accumulator. Fully-transparent layers are skipped. For per-layer opacity, blend modes, clipping, masks, or the eraser composite, use blend.

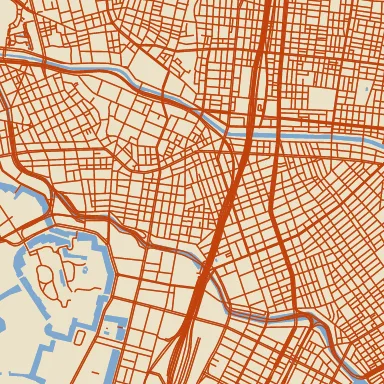

Several rasters composited bottom-to-top in one pass. style

Field	Type	Required	Description
layers	array of @node	yes	Raster (or sprite) layers, bottom first. The output mirrors the bottom layer’s kind.

threshold

Binarise a scalar field: emit low for samples ≤ value, high otherwise. With softness > 0 the transition is a linear ramp of width softness centred on value. Missing samples (NaN or the field’s nodata value) stay missing: the output keeps the field’s nodata value and geographic scale, and writes missing pixels as that nodata, or NaN.

Field	Type	Required	Description
field	@node	yes	Reference to another node (@name).
high	number | $param | @node	no	—
low	number | $param | @node	no	—
softness	number (0…∞) | $param | @node	no	—
value	number | $param | @node	no	—

tiling

Repeat a raster across the canvas with bilinear wrap-around sampling. Primary use case is paper / canvas texture composition. Does not stretch-to-fit — use a dedicated cover/contain node if that’s what you want.

Field	Type	Required	Description
anchor	world | tile	no	world (default) makes the pattern seamless across map tiles; tile restarts the pattern at every map tile’s top-left.
input	@node	yes	Reference to another node (@name).
offset-px	array of number	no	Pattern offset in canvas pixels [x, y].
opacity	number (0…1) | $param | @node	no	—
rotation-deg	number | $param | @node	no	Rotation of the pattern in degrees (clockwise).
scale-px	number (0.5…∞)	no	Canvas pixels per one source repetition. Defaults to the source image’s native width.

vibrance

Adaptively boost CIELAB chroma — low-chroma pixels rise more than already-vivid ones (amount = strength, 0 = identity). Hue and lightness preserved.

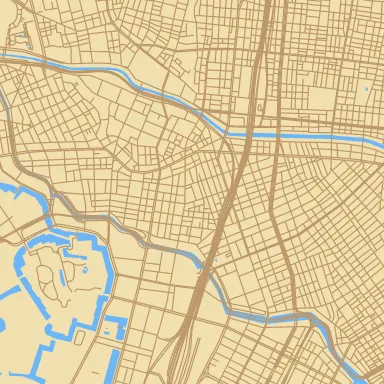

Saturation raised on muted colours only, leaving saturated ones alone. style

Field	Type	Required	Description
amount	number (0…∞) | $param | @node	no	—
input	@node	yes	Reference to another node (@name).

warp

Domain warp via an internal noise field, on a raster, sprite or scalar field; the output is the same kind as the input. With anchor: world (default) the warp is seamless across tile borders; the upstream pad grows by amp-px to keep samples inside the available raster. Warping an elevation field (dem) before contour makes the contour lines wobble together without ever crossing, since they stay level lines of one surface; warping a noise field with kind: scalar gives a swirled field to threshold or ramp. A field keeps its nodata value and geographic scale; nodata samples are left out of the interpolation, and a read with only nodata around it stays nodata. A field always clamps at its edge; boundary applies to images.

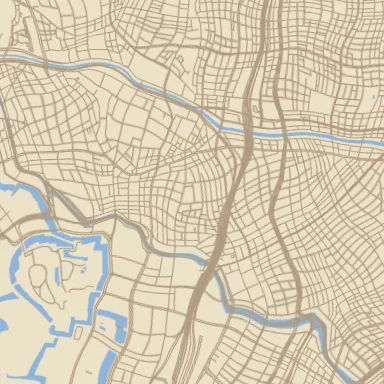

Pixels pushed around by internal noise — the paper-wobble op. style

Field	Type	Required	Description
amp-px	number (0…∞) | $param | @node	yes	—
amp-x-px	number (0…∞) | $param | @node	no	—
amp-x-px-max	number (0…∞)	no	Upper bound on amp-x-px for padding, required when amp-x-px is an @node port. Values above it are clamped.
amp-y-px	number (0…∞) | $param | @node	no	—
amp-y-px-max	number (0…∞)	no	Upper bound on amp-y-px for padding, required when amp-y-px is an @node port. Values above it are clamped.
anchor	tile | world	no	—
boundary	clamp | transparent | mirror	no	—
gain	number | $param | @node	no	—
input	@node	yes	Reference to another node (@name).
lacunarity	number | $param | @node	no	—
octaves	integer (1…12)	no	—
scale-px	number (0…∞) | $param | @node	yes	—
seed	integer (0…∞)	no	Field seed. Omitted, anchor: world uses a fixed seed so every tile samples the same field, and anchor: tile uses the host’s per-tile seed so each tile gets its own. Set it to pin either.
type	white | value | perlin | simplex | worley | cell	no	—
