Layer mapping

ezu translate lowers a MapLibre GL style into an ezu recipe. This page is the mapping table. For the workflow, see from a MapLibre style; for what is approximated or skipped, gaps and differences.

How close does it land?

Every pair below is one XYZ tile of protomaps-light — 68 layers, 11 of them symbol — converted with ezu translate and rendered by ezu on the CPU, next to the same tile drawn by maplibre-gl-js on a GPU (headless Chromium, software WebGL). Nothing is hand-tuned between them: same style, same data, same tile.

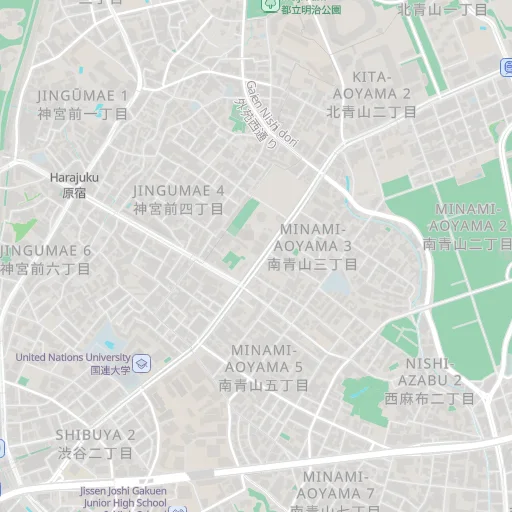

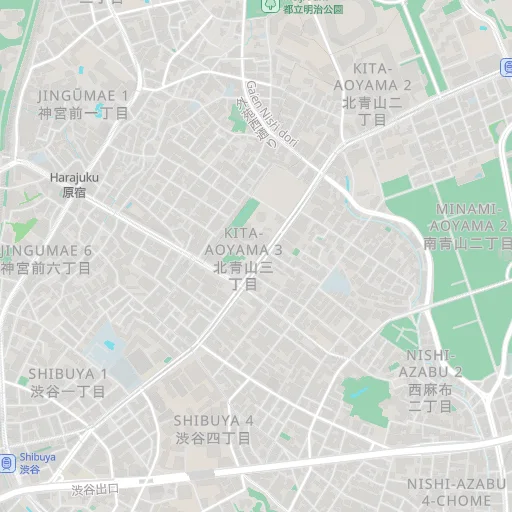

ezu (left) and maplibre-gl-js (right). Shibuya and Aoyama at z14 — dense labels, icons, park fills. SSIM 0.800, closeness score 94.90/100.

ezu (left) and maplibre-gl-js (right). Greater Tokyo at z12 — coastline, motorways, sparse labels. SSIM 0.874, closeness score 95.18/100.

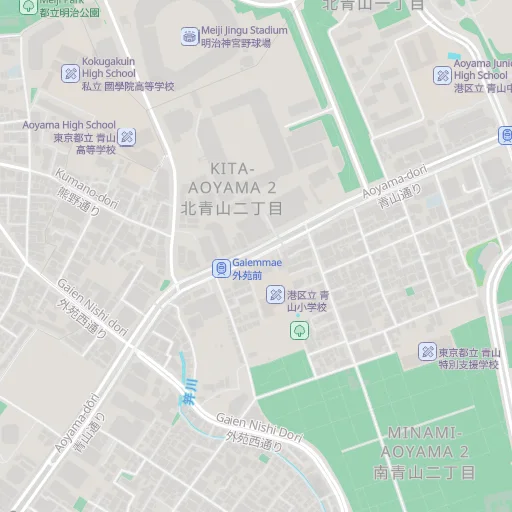

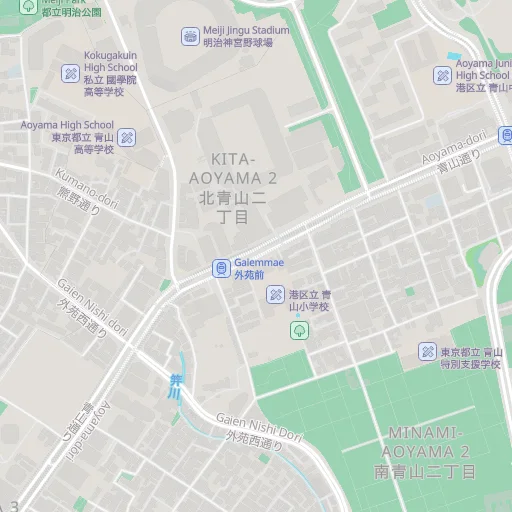

ezu (left) and maplibre-gl-js (right). A single Tokyo neighbourhood at z15 — street names and building fills. SSIM 0.846, closeness score 95.22/100.

SSIM is structural similarity over 8×8 luma windows, which is less dominated by antialiasing and label noise than a plain pixel difference. Reproduce any of these with ezu-compare:

cargo run --release -p ezu-compare -- \
  --style https://papers.reearth.land/styles/protomaps-light/style.json \
  --tiles 14/14550/6452,12/3637/1613,15/29101/12904 \
  --out out/compare

Two structural facts first:

• The ordered layer list becomes a stack — painter’s algorithm written as a graph, each layer composited over the ones below (a long list is split into a chain of narrower stacks, to the same pixels).
• The recipe is zoom-independent. Zoom and data functions are emitted as raw expressions on *-expr fields and evaluated per tile, so one recipe renders correctly at every zoom.

Layer types

MapLibre	ezu
background	solid. A zoom curve on background-color becomes an expr node feeding its color; a constant background-opacity is folded into the colour’s alpha
fill (solid colour, fill-outline-color)	features + fill-solid (outline → edge, or edge-expr when data-driven). fill-opacity becomes fill-alpha / opacity-expr and, under an outline, edge-alpha / edge-alpha-expr too, since MapLibre fades the outline with the fill
line (+ line-dasharray, line-cap/join, line-miter-limit, line-gap-width)	features → boundary (clip-edges: drop) → crisp stroke, the dash in line widths (dash-unit: width), so it scales with the width each feature is drawn at, an expression line-width included. A miter join carries line-miter-limit as miter-limit, MapLibre’s default of 2 when the layer sets none (a zoom curve through an expr node). On a polygon source-layer the rings are stroked without the tile-buffer clip edges, as MapLibre does. A gap renders MapLibre’s casing annulus — one stroke’s footprint with the corridor knocked out — so joins, caps and dash phase behave like the GL shader
circle (+ circle-stroke-*, circle-blur)	circles: a crisp disk at each point with its stroke ring, each property a constant or a per-feature *-expr. circle-stroke-opacity becomes stroke-opacity, and circle-blur the blur fade to the edge. The ring gets stroke-align: outside, so it runs from circle-radius out to radius + stroke width, as in MapLibre
raster	raster. The source’s minzoom / maxzoom carry over as min-zoom / max-zoom, as for vector and raster-dem sources. raster-opacity, raster-hue-rotate, raster-saturation, raster-contrast, raster-brightness-min and raster-brightness-max become the node’s opacity, hue-rotate-deg, saturation, contrast, brightness-min and brightness-max, which follow MapLibre’s shader to the formula; a zoom curve becomes an expr node feeding the field. A constant raster-resampling becomes the source’s resampling
hillshade (over raster-dem)	dem + hillshade (tone calibration still approximate). A constant hillshade-shadow-color / hillshade-highlight-color becomes shadow-color / highlight-color; an expression warns and keeps the node’s default, as does an unset highlight (none, where MapLibre’s is white). The source encoding maps mapbox (the default) to mapbox-rgb, terrarium to terrarium, and custom to custom with redFactor/greenFactor/blueFactor/baseShift carried as red-factor/green-factor/blue-factor/base-shift (or to the fixed encoding whose factors they equal)
heatmap	features → density (GL-JS kernel) → color-ramp, with the colour expression over heatmap-density baked to a 256-entry ramp per tile
fill-extrusion	flat footprint fill-solid using fill-extrusion-color — no 3-D, height and base dropped
symbol (icons)	the icon rides the layer’s label: a point symbol’s icon and text boxes join the shared collision index and place or drop as one unit
symbol (text)	text node, point or line placement

Symbol detail

Icons. icon-image (including data-driven), icon-size/-rotate/-opacity/ -anchor/-offset/-padding, icon-allow-overlap/icon-overlap/ -ignore-placement, icon-optional/text-optional, and icon-text-fit + -padding with nine-slice stretchX/stretchY/content metadata all convert. Icon-only symbol layers place too. Line-placed icons lower to a collision-free stamp, which keeps icon-anchor (data-driven too) and a constant icon-offset.

Text. symbol-placement: point / line / line-center with text-field, -size/-color/-halo-*/-opacity, anchor, offset, justify, wrapping, line height, letter spacing, transform, spacing, each of those layout properties as an expression too (a zoom curve on text-max-width, a match on text-justify), lowered to the matching *-expr field, a data-driven text-anchor on point placement (lowered to anchor-expr), text-rotate on point placement (rotate-deg / rotate-deg-expr), text-variable-anchor (with text-radial-offset and per-anchor offset mirroring) and text-variable-anchor-offset, both lowered to anchor-offsets, and on lines symbol-spacing / text-max-angle / text-keep-upright. Collision: text-allow-overlap/-ignore-placement/ -padding, text-overlap, symbol-sort-key.

Point placement labels each point, and each polygon once at its pole of inaccessibility (MapLibre’s findPoleOfInaccessibility, per tile); line placement walks each polyline with tangent-rotated glyphs and per-glyph collision, anchored on tile-clipped geometry with MapLibre’s spacing phases.

All of a style’s symbol layers collide in one shared index. Each lowers to a text-labels (candidates) + text-draw (placed labels) pair around a single label-placement node, placed top layer first — so a POI can knock out a road name, as MapLibre does. Placement is deterministic across tiles: candidates are gathered from the eight neighbours, deduped, ordered by symbol-sort-key with ties broken by tile feature order, and placed greedily.

Fonts. Zero-config: an unmapped text-font stack is served from the style’s own glyphs endpoint as an SDF glyphs source — the same pre-rendered glyphs MapLibre draws. --font "NAME=SOURCE" (or ConvertOptions::fonts) overrides with a real font per entry for outline rendering. A {token} field is an expression once the style is migrated (--migrate, see below).

Patterns and sprites

MapLibre	ezu
fill-pattern (constant)	icon → tiling, clipped to the fill shape via blend { composite: "source-atop" }
line-pattern (constant)	icon → line-stamp (over boundary, so polygon rings too), repeated along the line and fitted to line-width. An expression line-width, line-opacity or line-offset becomes width-expr / opacity-expr / offset-expr, and a constant line-translate shifts the lines first; line-gap-width is not drawn and warns
line-pattern (data-driven)	line-stamp with the style’s sprite sheet and the pattern expression as name-expr, cropping each feature’s icon
top-level sprite (single URL or [{id, url}])	one sprite source per sheet — atlas <url>.png plus index <url>.json, or an inline index. sheet:icon names supported

Shifted geometry

MapLibre	ezu
circle-translate, fill-translate, line-translate, fill-extrusion-translate (constant [x, y])	a transform node with translate-px between the features and the paint node, a line-pattern layer’s line-stamp included. The *-translate-anchor beside it needs nothing: a tile is never rotated
line-offset (constant or expression)	the stroke’s, or on a line-pattern layer the line-stamp’s, offset-px / offset-expr: the line drawn beside itself, to the right of travel, corners mitred as MapLibre extrudes them

Data, filters and functions

MapLibre	ezu
layer filter, expression form	passes through verbatim as the features node’s filter-expr
layer filter, legacy form (bare fields, !in, !has, none)	converted by maplibre_expr::convert_legacy_filter — MapLibre’s own pre-compile conversion, strict-type semantics included
zoom / data functions (interpolate, step, any expression)	emitted raw onto the target node’s *-expr field, evaluated per tile
legacy forms — {stops} function objects, {token} label strings, non-standard hsl() colours	converted only with --migrate (ConvertOptions::migrate), by maplibre_expr::migrate — MapLibre’s own migrate, each value converted with its property spec. Off by default: a legacy form is passed through untouched and named in a warning; a function object is then rejected by ezu-paint, a token string renders literally
layer minzoom / maxzoom	a render-time gate: min-zoom / max-zoom on the features, raster or dem node the layer reads, and for a background a switch picked by an expr over the zoom
multiple vector sources	all emitted, each with its minzoom / maxzoom as min-zoom / max-zoom; each features node targets its (source, layer)
inline / remote geojson source	a geojson source; the host projects it per tile and binds one layer (features targets (source, source))
CSS named colours (steelblue, transparent, …)	resolved to hex
translucent colours (rgba(), hsla(), #rrggbbaa)	#rrggbbaa, the alpha multiplied by the node’s opacity as MapLibre multiplies it by the layer’s
layout.visibility: "none"	dropped by default, or kept behind a switch with --keep-hidden (set its case’s when to true to enable)

Measuring your own style

The figures at the top of this page were produced by ezu-compare, which converts a style, renders it with ezu, renders a maplibre-gl-js reference, and reports RMSE, “visibly different” pixel fraction, and SSIM per tile. Point it at your style rather than trusting a general claim:

cargo run --release -p ezu-compare -- \
  --style YOUR_STYLE_URL_OR_PATH \
  --tiles 12/3637/1613,13/7275/3225,14/14550/6452 \
  --out out/compare

It writes the ezu render, the reference, a diff image, and the emitted recipe, so a disagreement is something you can look at rather than infer.
